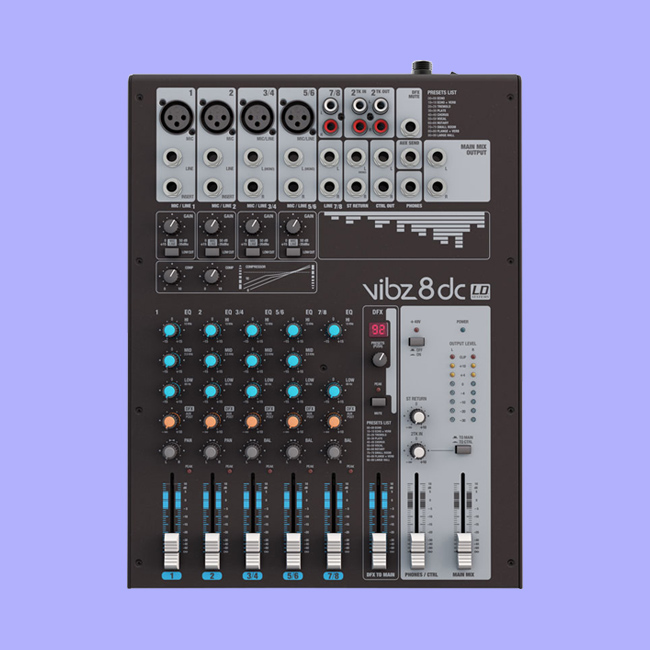

Pasivna audio mikseta VIBZ 6DC LD System sa DFX procesorom i kompresorom
Number of Channels: 8
Mono Mic/Line Input Channels: 4
Mono Mic/Line Input Connections: 6.3 mm stereo jack, XLR
Mono Mic Input Type: electronically balanced
Frequency Response Mono Mic Input: 10 – 45,000 Hz
Amplification Range Mono Mic Input: 0 – +50 dB
Channel Insert: 2
Insert: 6.3 mm stereo jack (TIP= send / RING= return)
Channel Crosstalk: 62 dB
THD Mono Mic Input: 0.0058 %
Impedance Mono Mic Input: 4 kOhm
S/N Ratio Mono Mic Input: 113 dB
Mono Line Input Type: electronically balanced
Amplification Range Mono Line Input: 0 – +50 dB
THD Mono Line Input: 0.0045 %
Impedance Mono Line Input: 21 kOhm
S/N Ratio Mono Line Input: 116 dB
Frequency Response Mono Line Input: 10 – 45,000 Hz
Mono Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Mono Channel Equalizer Mids: +/- 15 dB 2,500 Hz
Mono Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Mono Mic and Line Input Channels: Channel volume, PAN, DFX/AUX (Post), 3 Band-EQ (Low, Mid, High), Compressor (Kanal 1+2) Low-Cut, Gain
Phantom Power: +48 V DC switchable
Low Cut: 95 Hz
Compressor: yes
Stereo Line Input Channels: 3
Stereo Line Input Connections: 2 x 6.3 mm stereo jack, (Lmono,R)
Stereo Line Input Type: unbalanced
Frequency Response Stereo Line Input: 10 – 45,000 Hz
Amplification Range Mono Line Input: 0 – +50 dB
Channel Crosstalk: 62 dB
THD Stereo Line Input: 0.0045 %
Impedance Stereo Line Input: 3.7 kOhm
S/N Ratio Stereo Line Input: 116 dB
Stereo Channel Equalizer Treble: +/- 15 dB 12,000 Hz
Stereo Channel Equalizer Mids: +/- 15 dB 2,500 Hz (channel 3/4 + 5/6)
Stereo Channel Equalizer Bass: +/- 15 dB 80 Hz
Control Elements Stereo Line Input Channels: Channel volume, Balance, DFX/AUX (Post), 3 Band-EQ (Low, Mid, High), channel 3/4 + 5/6, 2-band EQ (Low, High) channel 7/8 Low-Cut, Gain channel 3/4 + 5/6
Main Section:
AUX/Effect Send Channels: 1
AUX/Effect Send Connections: 6.3 mm stereo jack, unbalanced
Stereo AUX Return Channels: 1 x stereo
Stereo AUX Return Connections: 2 x 6.3 mm stereo jack
Stereo Tape Output Channel: 1 x stereo
Stereo Tape Output Connections: 2 x RCA (Cinch)
Stereo Tape Input Channel: 1 x stereo
Stereo Tape Input Connections: 2 x RCA (Cinch)
Unbalanced Stereo Main Outputs: 1
Unbalanced Stereo Main Output Connections: 6.3 mm stereo jack, unbalanced
Impedance Unbalanced Stereo Main Outputs: 120 Ohm
Max. Level Unbalanced Stereo Main Outputs: +20 dBV
Stereo Control Room Outputs: 1
Stereo Control Room Output Connections: 6.3 mm stereo jack
Headphone Output: 1
Headphone Output Connections: 6.3 mm stereo jack
Minimum Headphone Impedance: 30 Ohm
Digital Effects Processor: Yes, 24-bit AD/DA Resolution
No. of Presets: 100
Footswitch Connection DFX Mute: 6.3 mm stereo jack
Control Elements Main Section: DFX To Main Volume, DFX Mute switch, DFX Presets Headphones / Control Room Volume 2TK Volume, Stereo Return Volume, Phantom Power, Master Volume, 2TR assignment (Main, CTRL Room)
Display Elements: 8-segment Level Meter, Phantom Power, DFX Peak / Mute, Power, Channel Peak

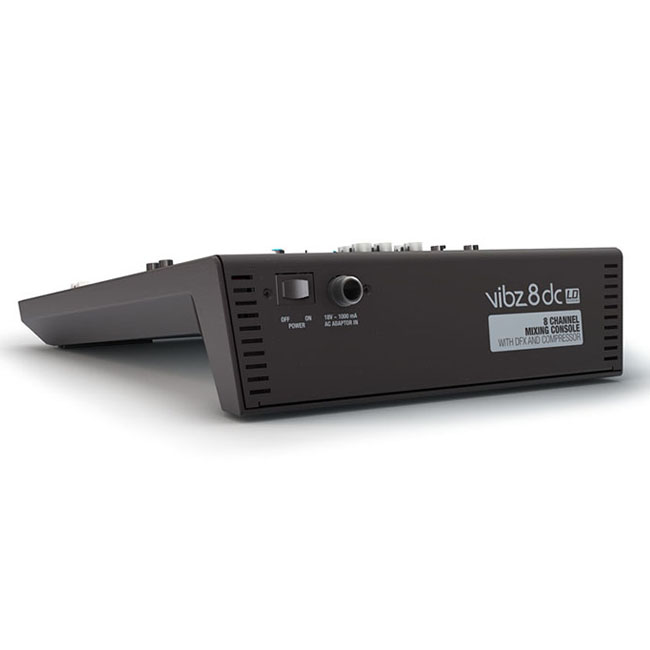

Power Supply: 18 V AC – 1 A, External PSU
Width: 265 mm
Height: 77 mm
Depth: 350 mm
